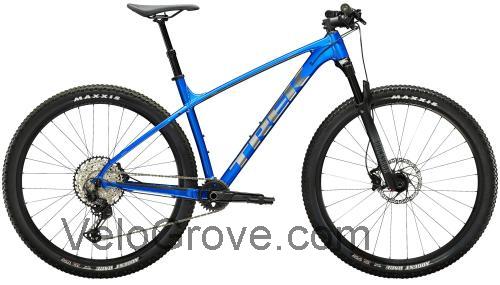

Trek X-Caliber 9 Specs and reviews
Trek X-Caliber 9 specs
| General Information | |
|---|---|
| Model Name | X-Caliber 9 |
| Brand/Manufacturer | Trek |
| Year of Release | 2022 |
| Country of Origin | United States |
| Mountain Bike Type | cross-country |
| Intended Use | recreational |
| Frame & Geometry | |
| Frame Material | Alpha Gold Aluminum |
| Frame Size Options | S, M, ML, L, XL, XXL |
| Frame Geometry | Reach: 425mm (size M) / Stack: 625mm (size M) / Head Tube Angle: 69.5° / Seat Tube Angle: 74.2° / Chainstay Length: 430mm / Wheelbase: 1119mm (size M) |
| Axle Standard | Boost 141mm |
| Bottom Bracket Type | PF92 |
| Internal Cable Routing | true |
| Frame Storage | Downtube storage |
| Suspension System | |
| Suspension Type | hardtail |
| Front Suspension Brand and Model | RockShox Judy Silver TK |
| Front Suspension Travel | 100mm |
| Suspension Adjustments | preload / rebound |
| Suspension Design/Kinematics | Standard |
| Drivetrain | |
| Drivetrain Type | 1x |
| Number of Speeds | 12-speed |
| Rear Derailleur Model | Shimano Deore M6100 |
| Shifter Brand and Model | Shimano Deore M6100 |
| Crankset Details | 32T chainring, 175mm length |
| Bottom Bracket Spec | PF92 |
| Cassette Range | 10-51T |
| Chain Type and Brand | Shimano Deore |
| Braking System | |
| Brake Type | hydraulic disc |
| Brake Brand and Model | Shimano MT200 |
| Rotor Size | Front: 180mm / Rear: 160mm |
| Brake Mount Standard | post mount |
| Wheels & Tires | |
| Wheel Size | 29" |
| Rim Material and Width | Bontrager Kovee, 23mm internal width |
| Hub Type and Engagement | Bontrager alloy, 54-tooth Rapid Drive |
| Tubeless Ready | true |
| Tire Brand, Model, and Width | Bontrager XR2 Comp, 29x2.20" |
| Max Tire Pressure | 50 psi |
| Cockpit & Contact Points | |
| Handlebar Type | Riser |
| Handlebar Material | Aluminum |
| Stem Length and Angle | 60mm, 7° |
| Grips Type | Bontrager XR Endurance Comp |
| Saddle Brand and Model | Bontrager Arvada |
| Seatpost Type | Rigid |
| Seatpost Diameter | 31.6mm |
| Pedals Included | false |
| Headset Brand and Bearing Type | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Geometry & Fit | |
| Available Frame Sizes | S, M, ML, L, XL, XXL |
| Standover Height | S: 755mm / M: 780mm / L: 805mm / XL: 810mm / XXL: 820mm |
| Rider Height Range | Check with manufacturer |
| Stack and Reach | M: 625mm stack, 425mm reach |
| Effective Top Tube Length | 590mm (size M) |
| Chainstay Length | 430mm |
| Bottom Bracket Drop and Height | Check with manufacturer |
| Head Tube and Seat Tube Lengths | Check with manufacturer |
| Price & Availability | |
| MSRP | $1,579.99 |
| Market Availability | Global |
| Color Options | Rage Red, Radioactive Red |
| Warranty Coverage | Frame: Lifetime / Components: 1 year limited |
Pros and Cons of Trek X-Caliber 9
| Pros | Cons |
|---|---|
| Lightweight aluminum frame | May not be as durable as a steel frame |
| Smooth and responsive shifting | Higher price point compared to entry-level bikes |
| Front suspension fork for a comfortable ride | May not be ideal for extreme off-road trails |
| Wide range of gears for versatile riding | Some users may find the saddle uncomfortable |
Common Issues and Problems with Trek X-Caliber 9
| Common Problems with Trek X-Caliber 9 Bike |
| 1. Chain slipping during gear shifts |
| 2. Brake pads wearing out quickly |
| 3. Front suspension fork losing air pressure |
| 4. Gear shifting becoming imprecise over time |
| 5. Creaking noise from the bottom bracket |
| 6. Loose headset causing handlebar wobble |
| 7. Wheel spokes breaking under stress |
User Reviews of Trek X-Caliber 9
| Name | Review |
|---|---|
| Mike | Great bike for the price. Smooth shifting and comfortable ride. Highly recommend. |
| Sarah | The X-Caliber 9 is lightweight and handles well on trails. Very satisfied with my purchase. |
| John | Impressed with the quality of components on this bike. Solid performance on different terrains. |
| Emily | Comfortable and reliable bike for both leisure rides and more challenging trails. Happy with my choice. |
Common Questions About Trek X-Caliber 9
-
Is the Trek X-Caliber 9 suitable for competitive cross-country racing?
No, this bike is more geared towards recreational use due to its design and components.
-
What are the differences between the "Rage Red" and "Radioactive Red" color options?
The "Rage Red" is a deeper red shade, while the "Radioactive Red" is a brighter, more vibrant red.
-
Can I upgrade the front suspension on the X-Caliber 9?
While possible, it's recommended to consult with a professional to ensure compatibility and performance.
-
Does the Trek X-Caliber 9 come with pedals included?
No, pedals are not included with the bike, allowing riders to choose their preferred pedal type.
-
Is the X-Caliber 9 suitable for long-distance trail rides?
Yes, the bike's geometry and components make it a good choice for extended trail adventures.
-
What is the maximum tire pressure recommended for the Bontrager XR2 Comp tires?
The recommended maximum tire pressure is 50 psi for optimal performance and durability.
-
Are the components on the X-Caliber 9 covered under warranty?
Yes, components have a 1-year limited warranty, providing coverage for manufacturing defects.
-
Can I customize the bike with different handlebars or grips?
Yes, you can personalize the cockpit with compatible components to suit your preferences and riding style.
-
What is the wheel size of the Trek X-Caliber 9?
The bike comes with 29" wheels, ideal for efficient cross-country riding and handling rough terrain.
-
Are the tubeless-ready wheels on the X-Caliber 9 easy to set up tubeless?
Yes, the Bontrager tubeless-ready wheels simplify the tubeless setup process for a hassle-free experience.
