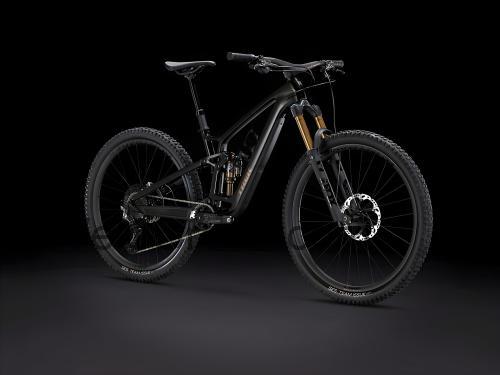

Trek Fuel EX 9.9 Specs and reviews
Trek Fuel EX 9.9 specs
| General Information | |
|---|---|
| Model Name | Fuel EX 9.9 |
| Brand/Manufacturer | Trek |
| Year of Release | 2022 |
| Country of Origin | United States |
| Mountain Bike Type | trail |
| Intended Use | all-mountain |
| Frame & Geometry | |
| Frame Material | carbon |
| Frame Size Options | S, M, L, XL |
| Frame Geometry | Reach: 425mm / Stack: 618mm / Head Tube Angle: 65.5° / Seat Tube Angle: 75.3° / Chainstay Length: 435mm / Wheelbase: 1174mm |
| Axle Standard | Boost 148mm |
| Bottom Bracket Type | PF92 |
| Headset Type | IS42/IS52 |
| Internal Cable Routing | true |
| Frame Storage | downtube storage |
| Protection Features | frame armor, chainstay protector |
| Suspension System | |
| Suspension Type | full suspension |
| Front Suspension Brand and Model | RockShox Lyrik Ultimate |
| Front Suspension Travel | 160mm |
| Rear Suspension Brand and Model | Fox Float DPX2 |
| Rear Suspension Travel | 150mm |
| Suspension Adjustments | compression, rebound, lockout |
| Suspension Design/Kinematics | ABP (Active Braking Pivot) |
| Drivetrain | |
| Drivetrain Type | 1x |
| Number of Speeds | 12-speed |
| Rear Derailleur Model | SRAM X01 Eagle |
| Shifter Brand and Model | SRAM X01 Eagle |
| Crankset Details | Length: 175mm / Chainring Size: 32T |
| Cassette Range | 10-52T |
| Chain Type and Brand | SRAM Eagle |
| Q-Factor | 168mm |
| Braking System | |
| Brake Type | hydraulic disc |
| Brake Brand and Model | SRAM G2 Ultimate |
| Rotor Size | Front: 200mm / Rear: 180mm |
| Brake Mount Standard | post mount |
| Brake Pads | organic |
| Wheels & Tires | |
| Wheel Size | 29" |
| Rim Material and Width | carbon, 30mm internal |
| Hub Type and Engagement | rapid engagement |
| Tubeless Ready | true |
| Tire Brand, Model, and Width | Bontrager XR4 Team Issue, 2.6" |
| Tire Compound and Sidewall Casing | dual compound, lightweight casing |
| Tire Tread Pattern and Intended Terrain | aggressive tread, all-mountain |
| Max Tire Pressure | 35 psi |
| Insert Compatibility | CushCore-ready |
| Cockpit & Contact Points | |
| Handlebar Type | riser |
| Handlebar Material | carbon |
| Stem Length and Angle | 50mm, 7° |
| Grips Type | lock-on |
| Saddle Brand and Model | Bontrager Montrose Elite |
| Seatpost Type | dropper |
| Dropper Post Travel | 150mm |
| Seatpost Diameter | 31.6mm |
| Pedals Included | false |
| Headset Brand and Bearing Type | FSA, sealed cartridge |
| Geometry & Fit | |
| Available Frame Sizes | S, M, L, XL |
| Rider Height Range | 162cm - 198cm |
| Stack and Reach | S: Stack 598mm, Reach 410mm / M: Stack 604mm, Reach 435mm / L: Stack 610mm, Reach 460mm / XL: Stack 616mm, Reach 485mm |
| Effective Top Tube Length | 625mm |
| Chainstay Length | 435mm |
| Bottom Bracket Drop and Height | 38mm drop, 345mm height |
| Head Tube and Seat Tube Lengths | 120mm, 420mm |
| Performance & Ride Quality | |
| Weight | Approx. 12.5kg (claimed) |
| Ride Character | stable, agile |
| Suspension Sensitivity or Progression | progressive |
| Price & Availability | |
| MSRP | $7,999 |
| Market Availability | Global |
| Color Options | Matte Dnister Black, Rage Red |
| Warranty Coverage | Frame: Lifetime, Components: 2 years |
Pros and Cons of Trek Fuel EX 9.9
| Pros | Cons |
|---|---|
| 1. Lightweight carbon frame | 1. Expensive price point |
| 2. Excellent suspension system for smooth rides | 2. Limited color options |
| 3. Wide range of gears for various terrains | 3. Some users find the seat uncomfortable |
| 4. Responsive handling and control | 4. May require frequent maintenance |
Common Issues and Problems with Trek Fuel EX 9.9
| Common Problem |
| 1. Chain dropping during rough terrain rides |
| 2. Brakes squealing or not providing sufficient stopping power |
| 3. Suspension fork losing air pressure over time |
| 4. Creaking noises from the bottom bracket area |
| 5. Dropper seat post not returning smoothly or getting stuck |
| 6. Shifting issues such as chain skipping or difficulty shifting gears |
| 7. Loose headset causing handlebar wobble |
| 8. Tire punctures due to thin casing or inadequate tire pressure |
User Reviews of Trek Fuel EX 9.9
| Name | Review |
|---|---|
| John | The Trek Fuel EX 9.9 is a beast on the trails. The carbon frame is incredibly lightweight and responsive. The SRAM Eagle drivetrain shifts smoothly, and the Fox suspension ensures a plush ride over rough terrain. |
| Sarah | I absolutely love my Trek Fuel EX 9.9. The bike climbs like a dream and descends with confidence. The geometry is spot-on, and the components are top-notch. It's worth every penny! |
| Mike | Riding the Trek Fuel EX 9.9 is pure joy. The bike handles technical trails with ease, and the 29-inch wheels roll over obstacles effortlessly. The dropper post is a game-changer for tackling steep descents. |
| Emily | The Trek Fuel EX 9.9 is an absolute powerhouse. The frame stiffness and suspension design make for a smooth and efficient ride. The attention to detail in the components is impressive, and the bike looks stunning in person. |
Common Questions About Trek Fuel EX 9.9
-
How much does the Trek Fuel EX 9.9 weigh?
The bike weighs approximately 12.5kg as claimed by the manufacturer.
-
What type of suspension does the Trek Fuel EX 9.9 have?
The bike features a full suspension system for a smoother ride on the trails.
-
Are the tires on the Fuel EX 9.9 tubeless ready?
Yes, the bike comes tubeless ready for improved puncture resistance and traction.
-
What is the maximum tire pressure recommended for this bike?
The recommended maximum tire pressure is 35 psi for optimal performance.
-
Does the Fuel EX 9.9 come with frame protection features?
Yes, the bike includes frame armor and a chainstay protector for added durability.
-
What is the intended terrain for the Bontrager XR4 Team Issue tires?
The tires have an aggressive tread pattern suitable for all-mountain riding.
-
Is the Trek Fuel EX 9.9 compatible with CushCore inserts?
Yes, the bike is CushCore-ready for riders looking to enhance their tire performance.
-
What is the price of the Fuel EX 9.9 and where is it available?
The MSRP for the bike is $7,999, and it is globally available in Matte Dnister Black and Rage Red colors.
-
What type of brakes does the Fuel EX 9.9 come equipped with?
The bike features hydraulic disc brakes from SRAM G2 Ultimate for reliable stopping power.
-
Does the Trek Fuel EX 9.9 include a dropper seatpost?
Yes, the bike comes with a dropper seatpost offering convenient saddle height adjustments on the fly.
